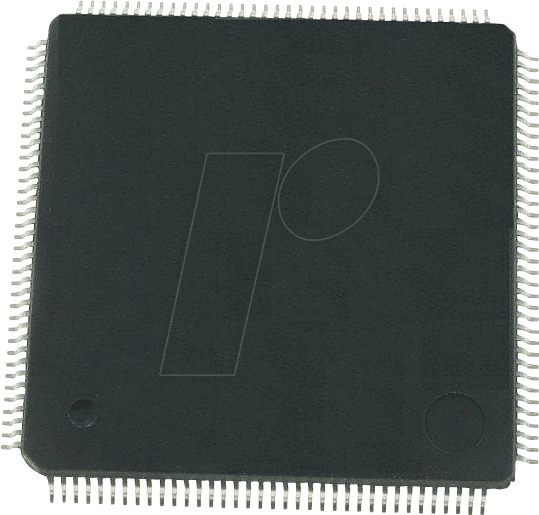

STM32F103ZGT6 – ARM®Cortex®-M3 Mikrocontroller, 32-Bit, 2V, 1024 KB, LQFP-144

The STM32F103xF and STM32F103xG performance line family incorporates the high-performance ARM®Cortex®-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 1Mbytes and SRAM up to 96 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer 3×12-bit ADCs, ten general purpose 16-bit timers plus 2xPWM timer, as well as standard and advanced communication interfaces: up to 2x I2Cs and 3x SPIs, 2x I2Ss, 1x SDIO, 5x USARTs, an USB and a CAN.The devices operate from a 2.0 to 3.6 V power supply. They are available in both the –40 to +85 °C temperature range and the –40 to +105 °C extended temperature range. A comprehensive set of power-saving mode allows the design of low-power applications.These features make the STM32F103xF/G high-density performance line microcontroller family suitable for a wide range of applications such as motor drives, application control, medical and handheld equipment, PC and gaming peripherals, GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems and video intercom. Key FeaturesARM®32-bit Cortex®-M3 CPU Core-72 MHz maximum frequency,1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access-Single-cycle multiplication and hardware divisionMemories-768 Kbytes to 1 Mbyte of Flash memory-96 Kbytes of SRAM-Flexible static memory controller with 4 Chip Select. Supports Compact Flash, SRAM, PSRAM, NOR and NAND memories-LCD parallel interface, 8080/6800 modesClock, reset and supply management-2.0 to 3.6 V application supply and I/Os-POR, PDR, and programmable voltage detector (PVD)-4-to-16 MHz crystal oscillator-Internal 8 MHz factory-trimmed RC-Internal 40 kHz RC-32 kHz oscillator for RTC with calibrationLow-power-Sleep, Stop and Standby modes-VBAT supply for RTC and backup registers3 x 12-bit, 1 µs A/D converters (up to 21 channels)-Conversion range: 0 to 3.6 V-Tripple-sample and hold capability-Temperature sensor2 × 12-bit D/A convertersDMA-12-channel DMA controller-Peripherals supported: timers, ADC, DAC, SDIO, SPIs, I2Cs and USARTsUp to 112 fast I/O ports-51/80/112 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerantDebug mode-Serial wire debug (SWD) & JTAG interfaces-Cortex® -M3 Embedded Trace Macrocell™Up to 17 timers-Up to ten 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input-2×16-bit, motor control PWM timer with dead-time generation and emergency stop-2 watchdog timers (Independent and Window)-SysTick timer 24-bit downcounter-2× 16-bit basic timers to drive the DACUp to 13 communication interfaces-Up to 2 x I2C interfaces (SMBus/PMBus)-Up to 5 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control-Up to 3 SPIs (18 Mbit/s)2 with I2S interface multiplexed-CAN interface (2.0B Active)-USB 2.0 full-speed interfaceCRC calculation unit, 96-bit unique IDECOPACK®
