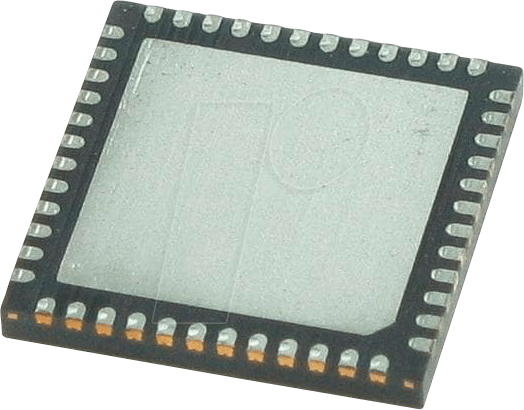

STM32F103CBU6 – ARM®Cortex®-M3 Mikrocontroller, 32-Bit, 2V, 128 KB, UFQFPN-48

The STM32F103xx medium-density performance line family incorporates the high-performance ARM®Cortex®-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 20 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer two 12-bit ADCs, three general purpose 16-bit timers plus one PWM timer, as well as standard and advanced communication interfaces: up to two I2Cs and SPIs, three USARTs, an USB and a CAN.The devices operate from a 2.0 to 3.6 V power supply. They are available in both the –40 to +85 °C temperature range and the –40 to +105 °C extended temperature range. A comprehensive set of power-saving mode allows the design of low-power applications.The STM32F103xx medium-density performance line family includes devices in six different package types: from 36 pins to 100 pins. Depending on the device chosen, different sets of peripherals are included, the description below gives an overview of the complete range of peripherals proposed in this family.These features make the STM32F103xx medium-density performance line microcontroller family suitable for a wide range of applications such as motor drives, application control, medical and handheld equipment, PC and gaming peripherals, GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVACs.Key FeaturesARM®32-bit Cortex®-M3 CPU Core-72 MHz maximum frequency,1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access-Single-cycle multiplication and hardware divisionMemories-64 or 128 Kbytes of Flash memory-20 Kbytes of SRAMClock, reset and supply management-2.0 to 3.6 V application supply and I/Os-POR, PDR, and programmable voltage detector (PVD)-4-to-16 MHz crystal oscillator-Internal 8 MHz factory-trimmed RC-Internal 40 kHz RC-PLL for CPU clock-32 kHz oscillator for RTC with calibrationLow-power-Sleep, Stop and Standby modes-VBAT supply for RTC and backup registers2 x 12-bit, 1 µs A/D converters (up to 16 channels)-Conversion range: 0 to 3.6 V-Dual-sample and hold capability-Temperature sensorDMA-7-channel DMA controller-Peripherals supported: timers, ADC, SPIs, I2Cs and USARTsUp to 80 fast I/O ports-26/37/51/80 I/Os, all mappable on 16 external interrupt vectors and almost all 5 V-tolerantDebug mode-Serial wire debug (SWD) & JTAG interfaces7 timers-Three 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input-16-bit, motor control PWM timer with dead-time generation and emergency stop-2 watchdog timers (Independent and Window)-SysTick timer 24-bit downcounterUp to 9 communication interfaces-Up to 2 x I2C interfaces (SMBus/PMBus)-Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control-Up to 2 SPIs (18 Mbit/s)-CAN interface (2.0B Active)-USB 2.0 full-speed interfaceCRC calculation unit, 96-bit unique IDPackages are ECOPACK®
